As civil construction, bridge works and track laying gather momentum on the 508-km Mumbai-Ahmedabad Bullet Train corridor, another critical layer of the country’s first high-speed rail project is beginning to take shape — the electrification system that will power trains at speeds of up to 320 kmph, according to PIB release.
Unlike conventional railway electrification, the Mumbai-Ahmedabad High Speed Rail (MAHSR) corridor is being equipped with a 2×25 kV Overhead Traction System, a globally adopted technology for high-speed rail that is being deployed in India for the first time, the report added.
While stations, viaducts and tunnels remain the most visible components of the project, the electrification network will determine whether trains can operate safely, reliably and continuously at high speeds.
Power network designed for uninterrupted 320 kmph operations
The high-speed corridor will draw electricity from the National Power Grid through a network of specially designed substations built exclusively for Bullet Train operations.
Power will first flow to 14 Traction Substations located along the corridor before being supplied to different stretches of the route. Five substations are being developed in Maharashtra — Mumbai, Thane, Virar, Boisar and Thane Depot — while nine will come up in Gujarat at Vapi, Bilimora, Surat, Bharuch, Vadodara, Anand, Mahemdabad, Ahmedabad and Sabarmati Depot.
As trains move between sections, the system has been designed to ensure seamless transition of power supply without interrupting operations. Supporting this network will be 31 Switching Posts, which will help isolate faults quickly and maintain uninterrupted traction power.
Beyond train operations, 16 Distribution Substations are also being constructed to supply electricity to stations, signalling systems, maintenance depots and other operational infrastructure.

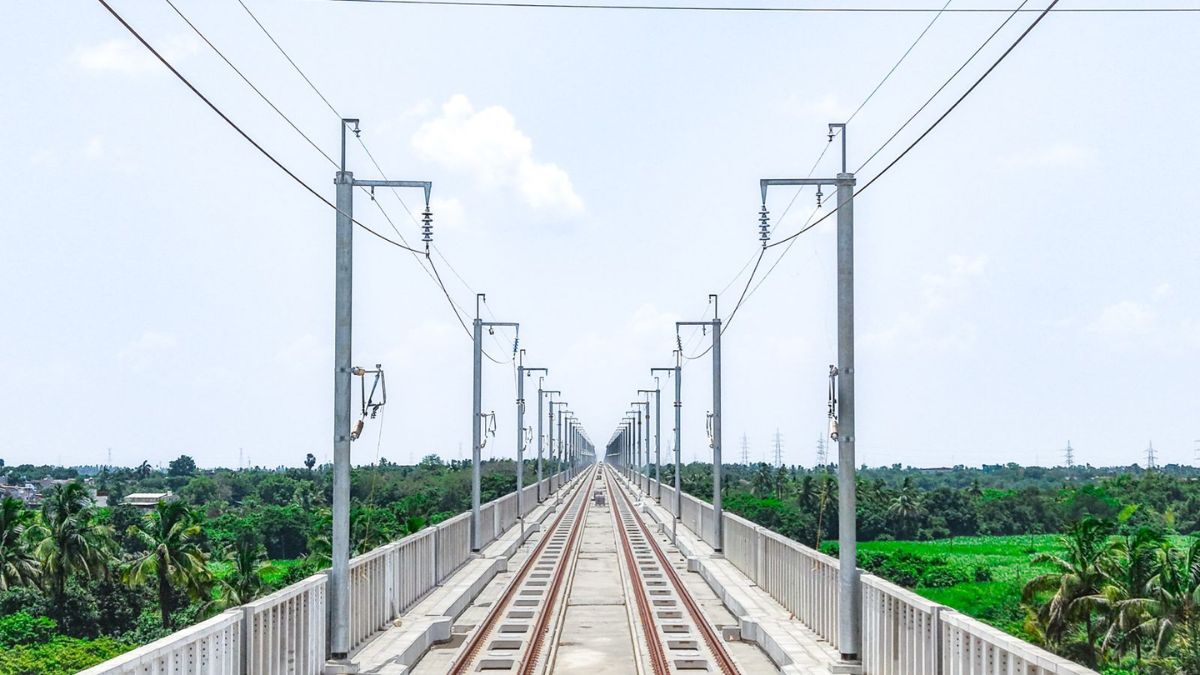

The overhead electrification itself represents one of the most technically demanding aspects of the project. More than 22,000 steel masts and 25,700 cantilever assemblies will support a compound catenary system across 1,125 track kilometres, including depots.
Standing between 10.5 metres and 14.5 metres high, these structures will carry overhead wires installed under carefully calculated mechanical tension, allowing the train’s pantograph to collect electricity smoothly while travelling at speeds of up to 320 kmph.
Domestic manufacturing, earthquake detection strengthen long-term infrastructure
Beyond introducing high-speed rail technology, the project is also expanding India’s domestic manufacturing capability for specialised railway systems.
Several components of the electrification network, including transformers, cross arms mounted on overhead equipment masts, protection wires, feeder wires and ground wires, are now being manufactured within the country. Equipment related to traction power supply systems, distribution power systems and electro-mechanical works is also being sourced domestically.
The localisation of these components is expected to reduce import dependence while creating manufacturing capability for future high-speed rail corridors planned across India.
Safety infrastructure has also been integrated into the power network. Each of the 14 Traction Substations will be equipped with Early Earthquake Detection Seismometers, capable of detecting seismic activity and automatically initiating protective measures to stop trains within seconds.
In total, 28 seismometers are being installed — 22 along the Bullet Train corridor at traction substations and switching posts, and six additional inland stations located in earthquake-prone areas of Maharashtra and Gujarat to provide advance warning.
The electrification system will also remain under continuous real-time monitoring through a centralised control centre. Automated protection mechanisms will detect faults and respond within fractions of a second to ensure reliable operation of the high-speed railway.
As the Mumbai-Ahmedabad Bullet Train project moves closer to the systems installation phase, the electrification network is emerging as one of the most critical pieces of infrastructure underpinning India’s first high-speed rail corridor. While much public attention has centred on viaducts, stations and tunnels, the success of 320 kmph operations will depend equally on the invisible network of substations, overhead equipment, control systems and safety technologies being built alongside the tracks.
