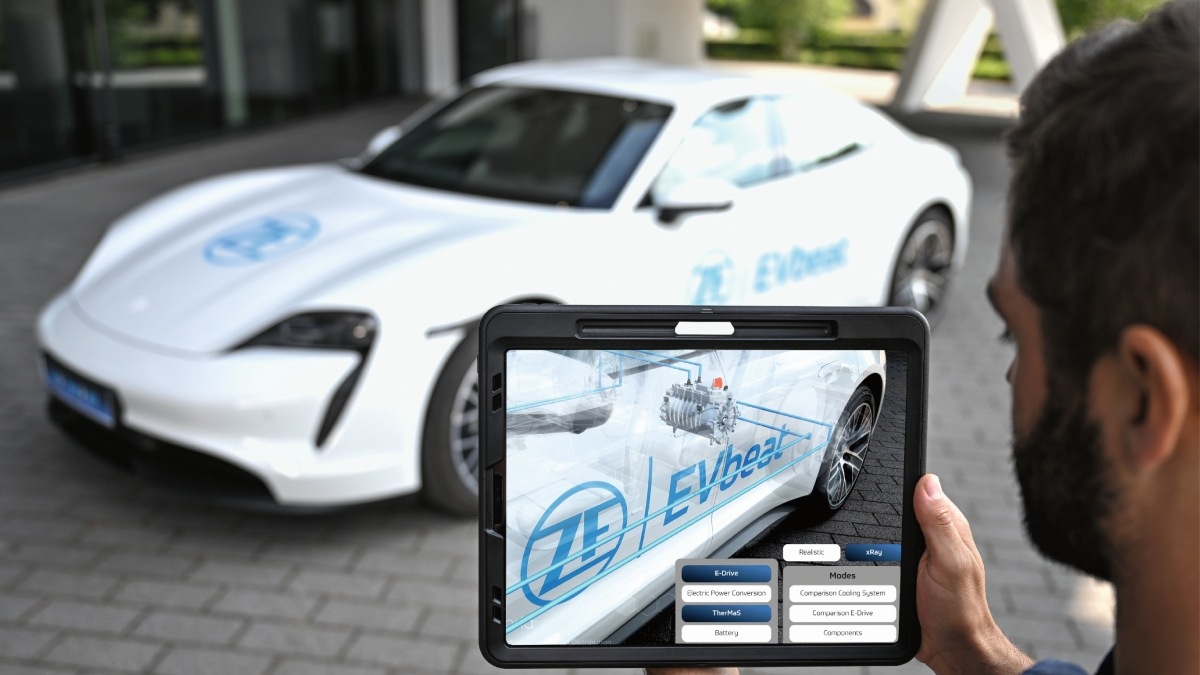

German tier 1 supplier ZF has showcased the electric concept vehicle EVbeat, which is designed for maximum compactness, low weight, and maximum efficiency in real operation at its Global Technology Day in Friedrichshafen.
The concept vehicle encompasses components of an e-driveline that have been optimised and combined into a holistic system. These include the 74-kilogram lightweight and ultra-compact driveline with a torque density of 70 Nm/kg, holistic thermal management and cloud-networked driveline software. At cold temperatures around freezing point, the range in real-world operation increases by up to a third compared with current technology.
Stephan von Schuckmann, member of the ZF Board of Management responsible for electrified driveline systems, among other things said, “Sustainable mobility is at the core of our corporate strategy. Based on an extremely efficient production vehicle, we are showing the potential that future electric drive components offer when we combine them into an even more efficient overall system.”
The ZF EVbeat concept vehicle is based on a Porsche Taycan and takes leading series technology from ZF and other market players as a benchmark.
Dr. Otmar Scharrer, Head of Development for Electric Driveline Systems at ZF said, “Our goal was to make this drive as compact and lightweight as possible while maintaining high driving dynamics and increasing efficiency in real-world operation. In terms of torque density, we are at the top of the podium when we compare ourselves with e-drives for passenger cars currently available on the market. At the same time, we paid strong attention to the sustainability aspect during development.” The electric motor works without heavy rare earth elements and the thermal management system does not use fluorine-based refrigerant. The reduced number of components and the overall reduction in system weight by one third for the electric drive and thermal management system make a double contribution to greater sustainability – both in production and operation.
EVSys800

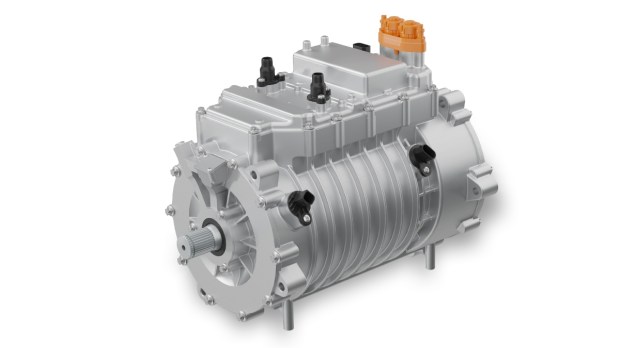

The EVSys800 is a modular 800-volt drive and consists of silicon carbide power electronics, the electric motor and a reduction gearbox. Despite its extremely compact design and light weight, ZF says the EVbeat does not skimp on performance.
The concept vehicle has a maximum torque of 5200 Newton meters available on the rear axle – and this with a uniquely high torque density for road-legal passenger cars with of 70 Newton meters per kilogram. The continuous and peak power of the electric motor is 206 and 275 kilowatts, respectively – ZF thus achieves continuous power of around 75 percent of the peak power.
In terms of dimensions, the drive saves 50 millimetres in width thanks to the compact reduction gearbox and the ZF-patented ‘Braided Winding’ technology of the electric motor, thus enabling space-saving, coaxial installation on the drive axle.
With a total weight of 74kg, the EVSys800, normalised to the same output as the latest ZF 800-volt series drive, is about 40kg or one third lighter and thus contributes significantly to the weight savings of the concept vehicle.
Thermal efficiency
Essential for this is the electric motor with a new cooling concept and a new winding technology. For cooling, ZF allows oil to flow directly around the copper rods – exactly at the point where most heat is generated during operation. Such efficient cooling significantly increases performance with the same weight and installation space.

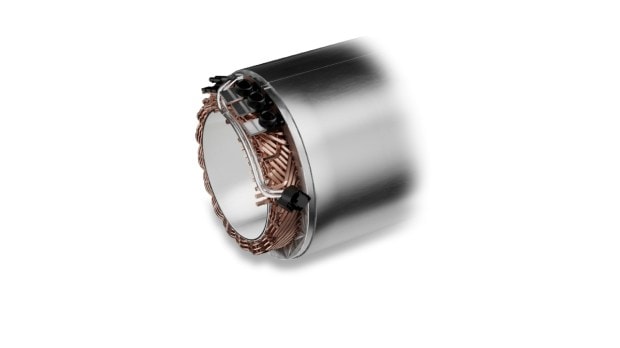

In addition, the use of heavy rare earth elements can be dispensed with, and the electric motor can be produced more sustainably. The ‘Braided Winding’ technology developed and patented by ZF, is a further development of the so-called wave winding and enables a total of 10 percent less installation space. The winding head alone is up to 50 percent smaller than with conventional approaches. This saves around 10 percent copper.
The inverter of the electric drive has been fundamentally redesigned. All essential components have been revised. Significant improvements were achieved in each of the areas of electromagnetic compatibility, power modules and capacitors in terms of installation space, weight and sustainability.
ZF says it has introduced a new coaxial reduction gearbox that transmits the drive forces of the electric motor via two planetary gear sets. They not only generate the desired final drive ratio, but also perform the fully integrated differential function. Compared with conventional offset concepts, in which the input and output shafts are not on the same axis, the coaxial solution reduces weight and installation space requirements without compromising on efficiency, noise and vibration. In combination with ‘Braided Winding’ technology, this drive can be made significantly shorter, allowing installation in almost any vehicle installation space.
The first technologies of the new ZF driveline will be available on the market from 2026.
Managing heat
For thermal management the company says it provides efficient temperature control of the powertrain and the entire vehicle. The temperature control of a vehicle can account for a significant proportion of its energy requirements in winter, which can be between 3 and 6 kilowatts, especially when heating up. Pleasant coolness in summer and warmth in winter are major comfort factors for the occupants. The right temperature is also an essential factor for the performance of the electric motor, the power electronics and the battery.

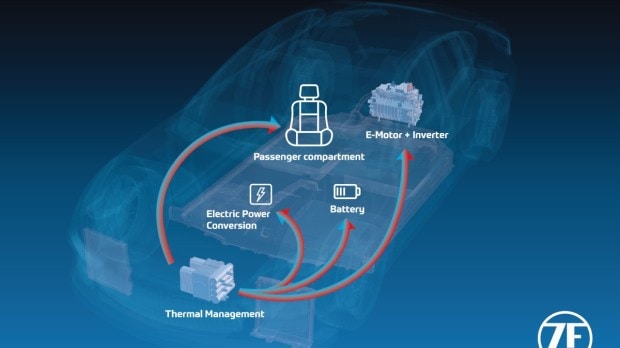

The first central thermal management system (TherMaS) developed by ZF for electric vehicles is integrated into the EVbeat concept vehicle. TherMaS uses a central unit and intelligent software to control all thermal processes for the driveline and passenger compartment. The new design significantly reduces space requirements and weight compared to previous approaches for cooling and heating e-cars. A propane-based 800-volt heat pump also requires significantly less energy. Because it is compact and simple in design, it can be easily integrated into vehicles.
The TherMaS concept has 3 designated circuits for the first time: At the centre is a very small refrigerant circuit. This is pre-filled and hermetically sealed and is therefore maintenance-free. In addition, the concept has no interfaces to other vehicle areas such as the interior.
ZF uses the fluorine-free, natural refrigerant propane. Although only half the previous refrigerant is used, the cooling capacity increases by a factor of two compared with refrigerants commonly used today. If required, the central refrigerant circuit serves two separately controllable cooling circuits in which frost-protected water flows as usual: The first is designed for the comparatively high temperatures of the electric motor, while the second regulates the temperature of the power and charging electronics. The control software regulates the cooling capacity.
Thanks to this overall thermal management, the range of the EVbeat increases by up to a third in demanding winter operation. The significantly better cooling performance makes the higher continuous output of the e-machine possible.
Software
The properties of the hardware systems lay an important foundation for the sustainable operation of the vehicle; their optimum orchestration is achieved via the software. ZF has developed its own powertrain software that networks all vehicle systems with each other and establishes the connection to the ZF cloud.
Because the efficiency of an electric motor depends on its thermal operating points, it is important to keep them in the optimum range at all times: At low speeds and high torque requirements, the optimum thermal operating point is very low, while at high speeds with low torque requirements, high temperatures are not a problem.
However, the thermal conditions cannot be established at short notice. ZF’s driveline software can anticipate the optimum operating points from the individual driving profiles and prepare the system accordingly.
It “learns” the behaviour of drivers and can anticipate the probability of individual driving profiles through an AI-based cloud service. For example, air conditioning and system cooling are reduced when short distances are detected.
On this basis, the assistance system can also give drivers direct advice on how to use the electric vehicle efficiently. For example, efficient acceleration and deceleration as well as an optimised maximum speed are displayed. This is particularly valuable when it comes to calculating an accurate and practical range before the journey, which is then reliably adhered to.
