Exploring Sudarshan Setu - India’s longest cable-stayed bridge

Feb 26, 2024 Shipra Parashar

PM Modi inaugurated Sudarshan Setu, a four-lane cable-stayed bridge in Gujarat on Feb 25

[{"selector":"#anim-803406f4-72de-4905-ab39-b803ecb1a1bd","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-d6f74662-4594-4430-825d-5df7cabd78d1","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-387d5777-2763-46ef-9d3c-40d3f94e5a27 [data-leaf-element=\"true\"]","keyframes":{"transform":["translate(0%, 0%) scale(1.5)","translate(0%, 0%) scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}]

The bridge connects Okha to Beyt Dwarka island, enhancing accessibility and reducing travel time

[{"selector":"#anim-f5b450f9-3383-4c92-97e8-d7211ab99f7e","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-6ee11501-48a2-4bd7-bfb5-257cac57700c","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-ae99c190-3f78-475e-85d9-f011437eba60 [data-leaf-element=\"true\"]","keyframes":{"transform":["translate3d(-12.499999772451451%, 0, 0)","translate3d(0%, 0, 0)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}]

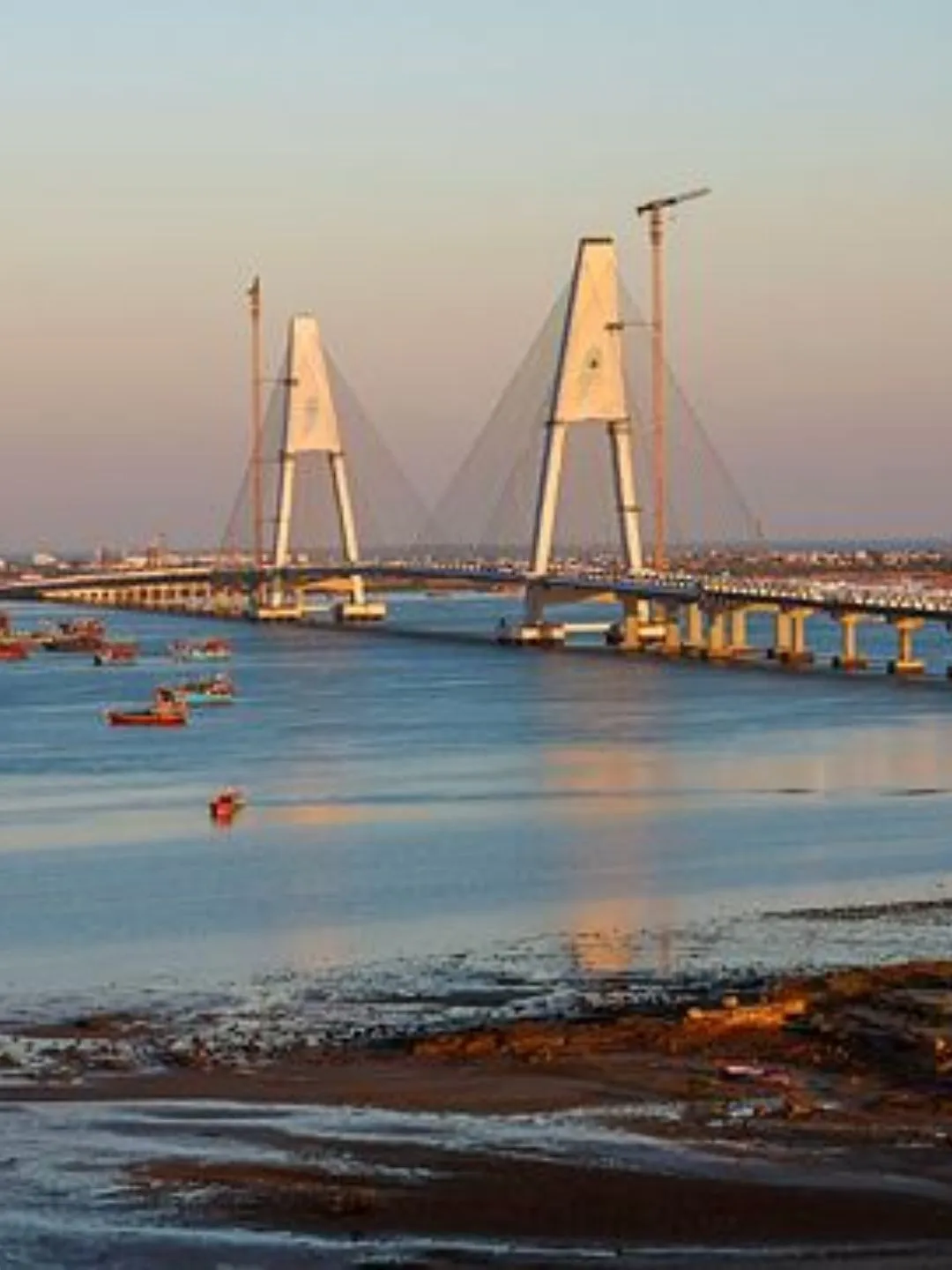

Sudarshan Setu is 2,320 meters long, making it the longest cable-stayed bridge in India

[{"selector":"#anim-78ac92ee-6a95-459d-867c-1bd874a16af0","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-589fbed7-275f-42ac-9b70-140765863942","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-b48acc8a-f94d-4308-8366-a36f61d9b6f2 [data-leaf-element=\"true\"]","keyframes":{"transform":["translate(24.999997720722014%, 0%) scale(1.5)","translate(0%, 0%) scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}]

The bridge is supported by two A-shaped composite pylons standing at a height of 129.985 meters

[{"selector":"#anim-7085ef27-0074-4409-a413-bd22dd1795ae","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-175ef214-b95d-47e6-b7ae-e8c05898e263","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-0f937369-ab9b-4b3a-885e-8e77cda8fbc2 [data-leaf-element=\"true\"]","keyframes":{"transform":["translate3d(-12.499999772451451%, 0, 0)","translate3d(0%, 0, 0)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}]

Costing Rs 979 crore, it features a visually striking design with steel pylons arranged in a fan-like pattern

[{"selector":"#anim-ed28a13d-e821-49c0-ae24-33a123a2d7e6","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-4db6dea5-f803-4840-b7da-997609185165","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-08c664af-bbf1-405f-a82b-dbf889fdace5 [data-leaf-element=\"true\"]","keyframes":{"transform":["translate(0%, 0%) scale(1.5)","translate(0%, 0%) scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}]

The bridge is 27.20 meters wide, with 2.50-meter-wide footpaths on both sides. It has a composite steel-reinforced concrete deck

[{"selector":"#anim-81f46386-9554-4d5d-9cdb-eaff83f6ec2c","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-1c08a332-1d04-4638-9967-55d01c97b8e6","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-e2e17e3b-2db4-4f61-a85c-f4b9d026228e [data-leaf-element=\"true\"]","keyframes":{"transform":["translate3d(-12.499999772451451%, 0, 0)","translate3d(0%, 0, 0)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}]

The total road length connected by the bridge is 2.8 kilometers. The spans include a 500-meter-long middle span

[{"selector":"#anim-6f23a034-3ed0-43ae-b32e-09b7ea2ea671","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-fd5627c0-6a08-489a-96d0-94dca1c6c3da","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-2cafa129-6d76-446a-a914-6825ad916e97 [data-leaf-element=\"true\"]","keyframes":{"transform":["translate(0%, 0%) scale(1.5)","translate(0%, 0%) scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}]

Solar panels with a 1 MW capacity are installed on the footpath shade

[{"selector":"#anim-38b21ab7-a8d1-46b7-a2a2-0855386cb4a6","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-06838ff0-bdcb-4887-9e32-55cb81618cbf","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-6a7f94df-ee8d-4e88-b0a0-fa05388fdb0f [data-leaf-element=\"true\"]","keyframes":{"transform":["translate3d(-12.499999772451451%, 0, 0)","translate3d(0%, 0, 0)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}]

The project aims to benefit 8,500 residents on the island and accommodate two million pilgrims

[{"selector":"#anim-7a2b59b7-c026-44a6-aeba-b694aa7804c0","keyframes":{"opacity":[0,1]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"both"}] [{"selector":"#anim-f2013101-5600-41e1-ad2d-328eda4cebcb","keyframes":{"transform":["scale(0.3333333333333333)","scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] [{"selector":"#anim-85064320-2a4e-4bcd-8a3e-78cac4f24e23 [data-leaf-element=\"true\"]","keyframes":{"transform":["translate(0%, 0%) scale(1.5)","translate(0%, 0%) scale(1)"]},"delay":0,"duration":2000,"easing":"cubic-bezier(.3,0,.55,1)","fill":"forwards"}] Learn more
