Why is Anji Khad Bridge an engineering marvel? Know all about India’s first cable-stayed railway bridge via these majestic pics

Anji Khad Bridge will connect the Katra and Reasi section of Jammu-Baramulla line.

Anji Khad Bridge | Chenab Bridge | India's first cable stayed rail bridge
Not many know this, but the Anji Khad bridge was initially proposed to be an arch bridge. (Image Courtesy: PTI)

Anji Khad Bridge: India’s first cable-stayed bridge and the first-of-its-kind in the country, is currently under construction. The Anji Khad bridge is being constructed in the Reasi district of the Union territory of Jammu and Kashmir. This bridge is gaining countrywide attention for being an engineering marvel and we are here to give you a first-hand insight into its connecting route, the speed with which trains would be able to run on this bridge and also its probable launch time.

(Image Courtesy: PTI)

Anji Khad Bridge: Some unknown facts

Not many know this, but the Anji Khad bridge was initially proposed to be an arch bridge, a design similar to that of the Chenab Bridge. However, later a committee recommended that the location was not suitable for an arch bridge due to the vulnerability of the complex structure. Later in 2016, Indian Railways decided to build a cable-stayed bridge taking the geographical concerns in mind. The proposed bridge will connect tunnel T2 on Katra side and tunnel T3 on Reasi side.

(Image courtesy: PTI)

Anji Khad Bridge: Location and Connecting Route

Anji Khad Bridge is one of the most daunting projects taken up by the Indian Railways. The bridge will connect the Katra and Reasi section of Jammu-Baramulla line. The bridge is about 80 km by road from the Jammu city. It is located in the picturesque mountains of the Himalayas. Due to the complex, fragile and daunting geological features, detailed site-specific investigations were carried out by IIT, Roorkee and IIT, Delhi, as per a report by news agency ANI.

(Image Courtesy: PTI)

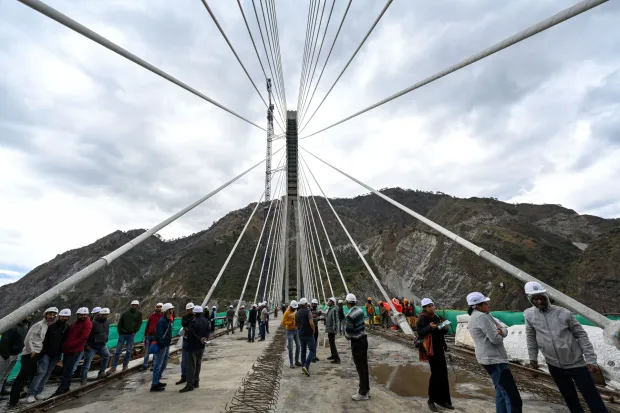

The asymmetrical cable-stayed bridge balanced on the axis of a central pylon, connects tunnels T2 and T3 on the Katra-Banihal Section of the Udhampur-Srinagar-Baramulla Rail Link project.

Anji Khad Bridge: Why is it considered an engineering marvel?

Even due to the sheer complex nature of the geographic location of the bridge, it is built quite robustly as it can withstand 213 kmph of winds. The bridge is a part of the national project of the Udhampur-Srinagar- Baramulla Rail Link (USBRL) Project. As per earlier reports, the Anji Khad bridge, once completed, will become taller than the Eiffel Tower!

(Image Courtesy: PTI)

The total length of the bridge is 725 meters, out of which the cable-stayed portion is 473.25 meters. It has the support of 96 cables, making it the longest cable-stayed bridge in the country. Once completed, trains on the bridge will be able to run at a speed of 100 kilometres per hour!

(Image Courtesy: PTI)
